This LT fully automatic busbar punching, bending and cutting machine uses three independent hydraulic systems, so punching, shearing and bending can...
This LT fully automatic busbar punching, bending and cutting machine uses three independent hydraulic systems, so punching, shearing and bending can run simultaneously rather than in sequence. Positioning across all three units is automatic, coordinated by servo motors, a PLC and a touch screen, and the cutting length is servo-controlled with the bending system calculating the unrolled length of the copper busbar itself. For a UK manufacturer moving from individual machines to a production cell, that simultaneity is the throughput gain — the machine does not wait for each station in turn. Supplied to ISO 9001:2000 / CE certification with MOQ 1 and a 7–25 day delivery window.
Test conditions: Copper and aluminium busbar processing on three independent hydraulic systems, with automatic positioning of all three units coordinated by servo motor, PLC and touch screen.
Measured values: Power 3 × 4 kW or 3 × 5.5 kW; delivery time 7–25 days; MOQ 1 pc; certificate ISO 9001:2000 / CE; cutting length automatically controlled by servo motor giving a flat cut face with no waste, burrs or droop; bending system automatically calculates the unrolled length of the copper busbar.
Benchmark: Three independent hydraulic systems against one shared system: punching, shearing and bending can work simultaneously, so cycle time is set by the slowest station rather than by the sum of all three.
\n \n
\n\n Product Introduction: \n
\n\n \n
\n
\n
\n
\n
\n
\n Product details \n
\n
\n
\n
\n Model: 503E-3-S \n
\n\n Power: 3×4Kw / 3×5.5Kw \n
\n\n Delivery time: 7-25 days \n
\n\n MOQ: 1 pcs \n
\n\n Certificate: ISO9001:2000/CE \n
\n\n Payment: T/T , L/C \n
\n\n Brand: LT \n
\n\n Place of region: Jinan, China \n
\n
\n
\n

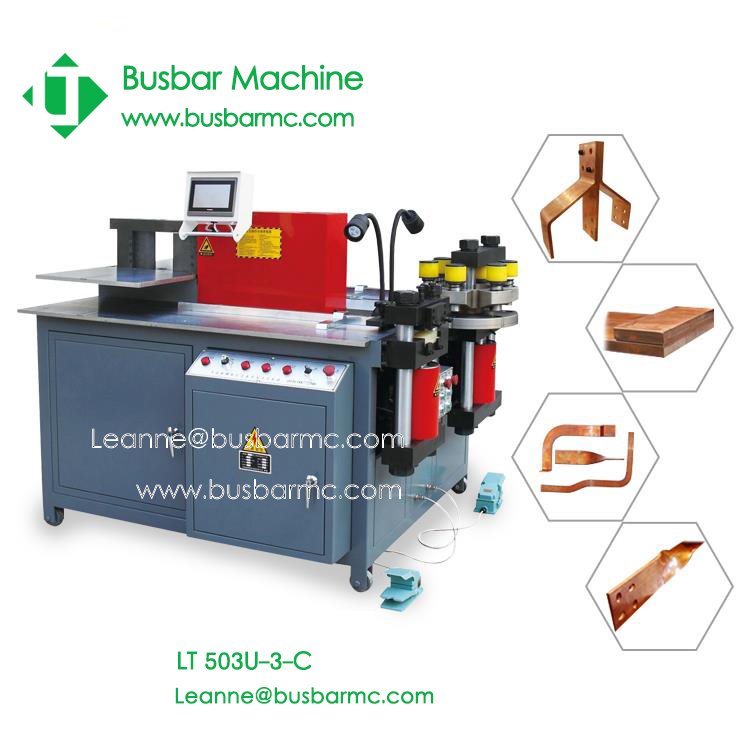

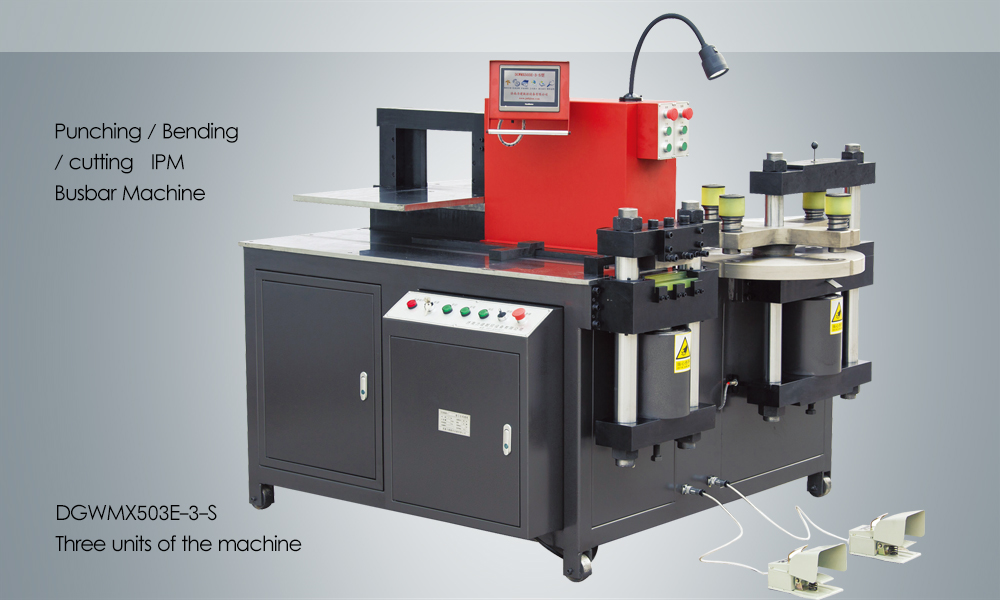

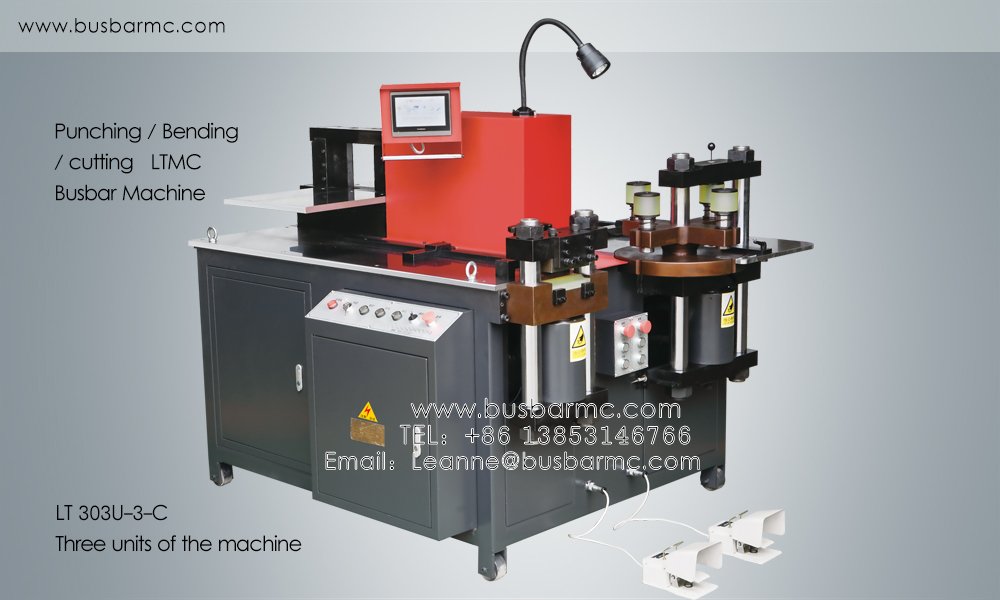

\n This machine is has three processing units of punching, cutting and bending. And it is designed with three independent hydraulic systems, so the punching, shearing, and bending unit can work simultaneously. \n
\n
\n
\n

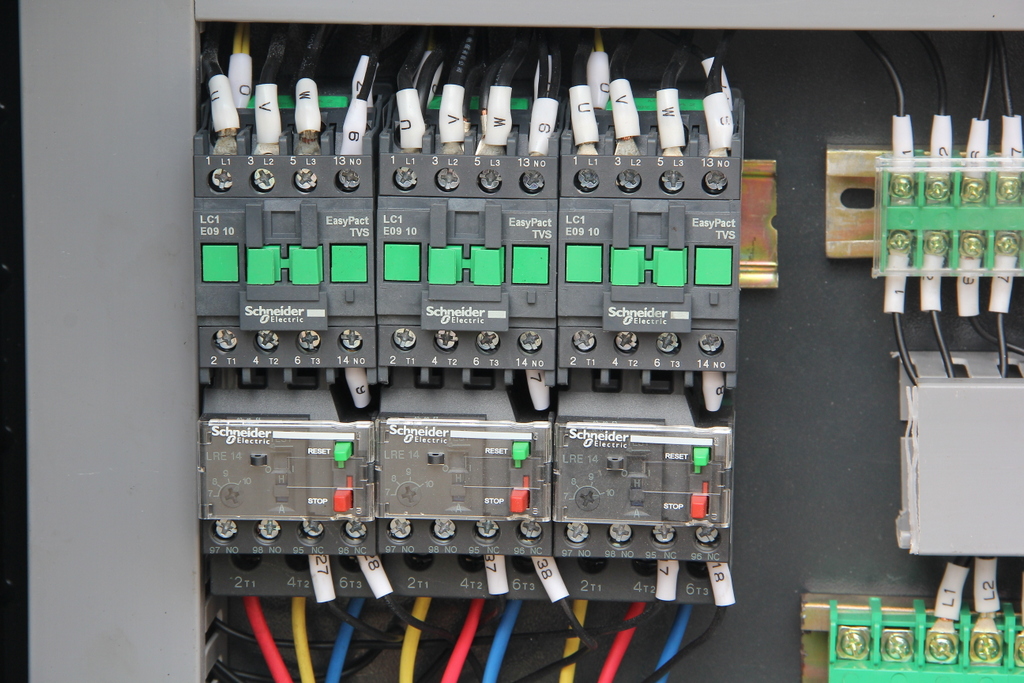

\n The machine realizes the automatic positioning of the three units, through the cooperates with each other of servo motor, PLC and touch screen. \n
\n
\n
\n
\n Main Characters: \n
\n
\n
\n
\n (1) The cutting length is automatically controlled by servo motor, the incision interface is flat, no waste, burrs and droop. \n
\n
\n
\n
\n (2) No need to mark a proofing board for punching. Servo motor automatically locates punching coordinates. It supports continuous punching and punching with different apertures, and supports coordinate input and common template selection, which is convenient and efficient. \n
\n
\n
\n
\n (3) The bending system automatically calculates the unrolling length of the copper busbar. High-precision screw guides control the bending length. The system has a variety of built-in bending processing templates; supports multi-segment and multi-angle continuous bending processing. \n
\n
\n
\n
\n Processing units display \n

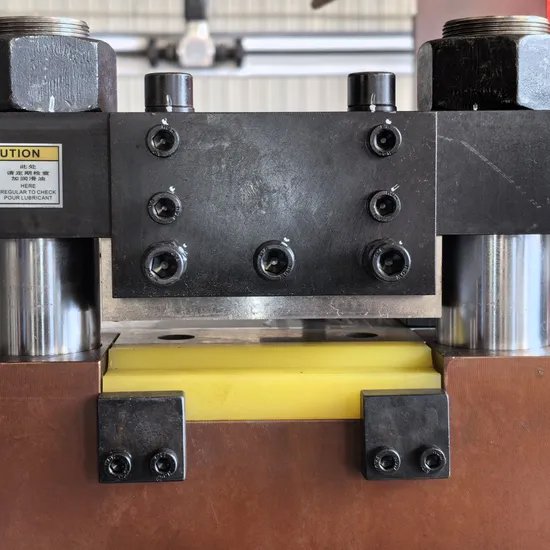

\n\n Cutting unit \n
\n
\n
\n

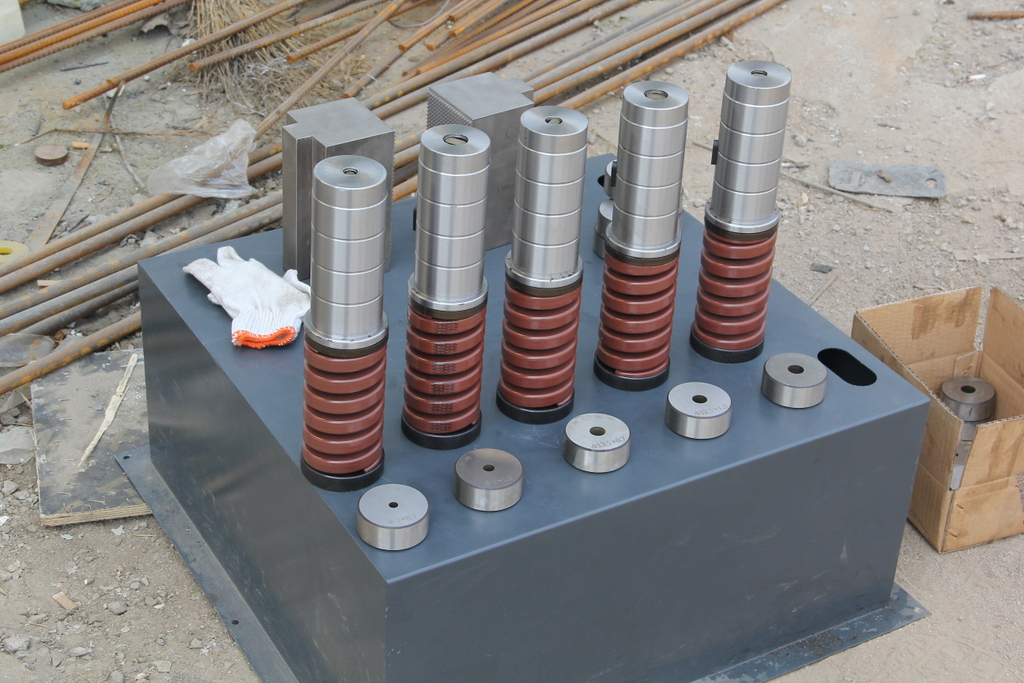

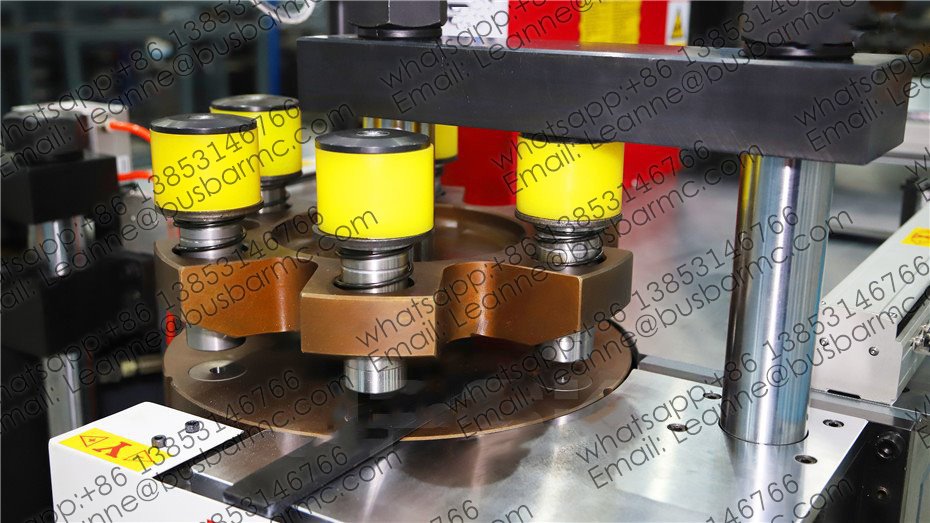

\n Punching unit \n
\n
\n
\n
\n Bending unit \n
\n
\n
\n
\n
\n

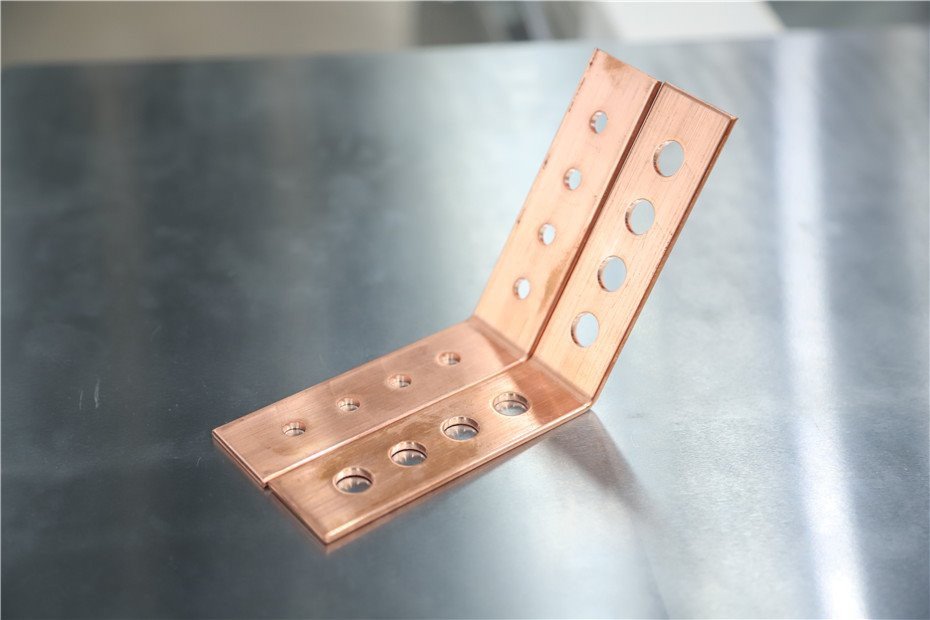

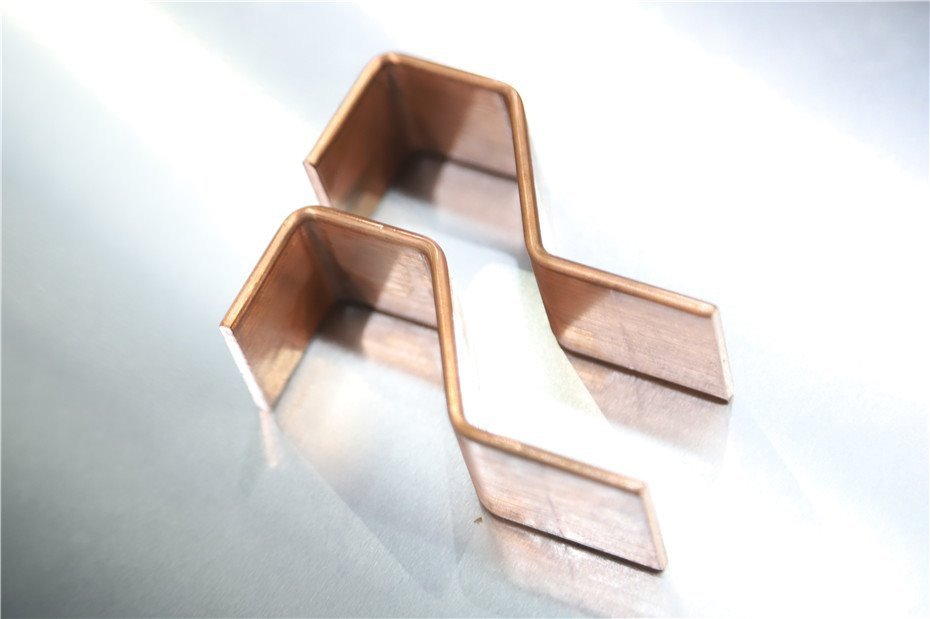

\n Processing samples display
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
|
\n Item
\n \n \n \n |
\n
\n Model
\n \n \n \n |
\n |
|
\n \n LT-303U-3-C \n \n |
\n
\n \n LT-503U-3-C \n \n |
\n |
|
\n \n Nominal force (kn) \n \n |
\n
\n \n 300 \n \n |
\n
\n \n 500 \n \n |
\n
|
\n \n Punching dia. range (mm) \n \n |
\n
\n \n Φ4.3~Φ25 \n \n |
\n
\n \n Φ4.3~Φ30 \n \n |
\n
|
\n \n Max. thickness (mm) \n \n |
\n
\n \n 12 \n \n |
\n
\n \n 16 \n \n |
\n
|
\n \n Max. width (mm) \n \n |
\n
\n \n 160 \n \n |
\n
\n \n 200 \n \n |
\n
|
\n \n Number of servo axes \n \n |
\n
\n \n 4 \n \n |
\n
\n \n 4 \n \n |
\n
|
\n \n Punching Y-axis stroke (mm) \n \n |
\n
\n \n 150 \n \n |
\n
\n \n 200 \n \n |
\n
|
\n \n Punching X-axis stroke (mm) \n \n |
\n
\n \n 500 \n \n |
\n
\n \n 500 \n \n |
\n
|
\n \n Cutting X-axis stroke (mm) \n \n |
\n
\n \n 1000 \n \n |
\n
\n \n 1000 \n \n |
\n
|
\n \n Bending X-axis stroke (mm) \n \n |
\n
\n \n 500 \n \n |
\n
\n \n 500 \n \n |
\n
|
\n \n Precision of block gauge (mm) \n \n |
\n
\n \n 0.2 \n \n |
\n
\n \n 0.2 \n \n |
\n
|
\n \n Bending precision (degree) \n \n |
\n
\n \n ±1° \n \n |
\n
\n \n ±1° \n \n |
\n
|
\n \n Repeat bending precision (degree) \n \n |
\n
\n \n ±0.5 \n \n |
\n
\n \n ±0.5 \n \n |
\n
|
\n \n Power (kw) \n \n |
\n
\n \n 3×4kw \n \n |
\n
\n \n 3×5.5kw \n \n |
\n
|
\n \n Outside dimension (mm) \n \n |
\n
\n \n 1850×1650×1340 \n \n |
\n
\n \n 2015×1815×1420 \n \n |
\n
|
\n \n Total weight (kg) \n \n |
\n
\n \n 1500 \n \n |
\n
\n \n 1900 \n \n |
\n
\n \n
\n
\n
\n
\n Hot Tags: fully-automatic busbar punching bending cutting machine, China, suppliers, manufacturers, factory, price \n
