The LT 503U-3-C is a three-station hydraulic busbar processing machine rated to 16 mm thickness and 200 mm width — a work envelope that covers the...
The LT 503U-3-C is a three-station hydraulic busbar processing machine rated to 16 mm thickness and 200 mm width — a work envelope that covers the large majority of low voltage busbars used in UK switchgear, motor control centres and distribution boards built to BS EN 61439. Punching, shearing and bending sit on one frame as separate units, so each station is set independently rather than a single tool being reset between operations. It is the practical step up from the 303 series when busbar sections exceed 12 × 160 mm, and machines ship crated in wood cases with an inner plastic sheet wrap for container freight into Felixstowe or Southampton.
Test conditions: Copper and aluminium busbar processed on the three-station frame (punching unit, shearing unit, bending unit) within a stated work envelope of 16 mm thickness by 200 mm width.
Measured values: 16 mm maximum busbar thickness; 200 mm maximum busbar width; three independently adjustable stations on one machine frame; supplied crated in a wood case with inner plastic sheet wrap.
Benchmark: The 303-series three-in-one machines in the same LT range are rated 12 mm × 160 mm, so the 503U-3-C adds roughly one third more section thickness and 25% more width without changing the single-operator workflow.
503U-3-C Hydraulic Busbar Processing Machine 16mm 200mm

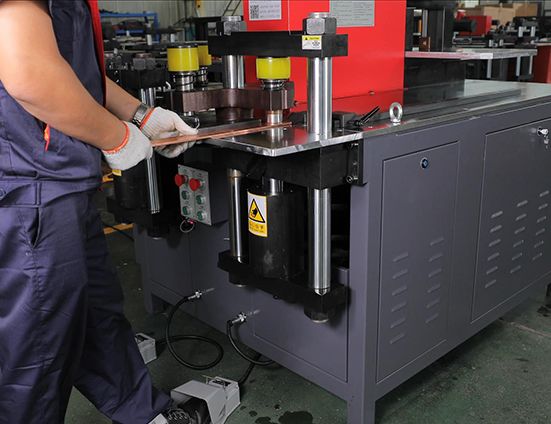

1.Main picture:
This series 503U-3-C Hydraulic Busbar Processing Machine 16mm 200mm has three units: punching shearing and bending. It is easy to adjust each unit to shorten the processing time and improve the production efficiency.
The bending unit uses the imported PLC control system, which has a stable system and high precision. It is used to process copper and aluminum busbars in different specification. By relative operation unit it can and quickly do all kinds of processing to copper and aluminum Busbar, such as shearing, punching(circular hole and oblong hole), flat/Vertical bending and knurling.change different mold to do special processing to copper bar, such as flat press, embossing, cable connector process, and can do cutting,flat Crushing pushing and bending.

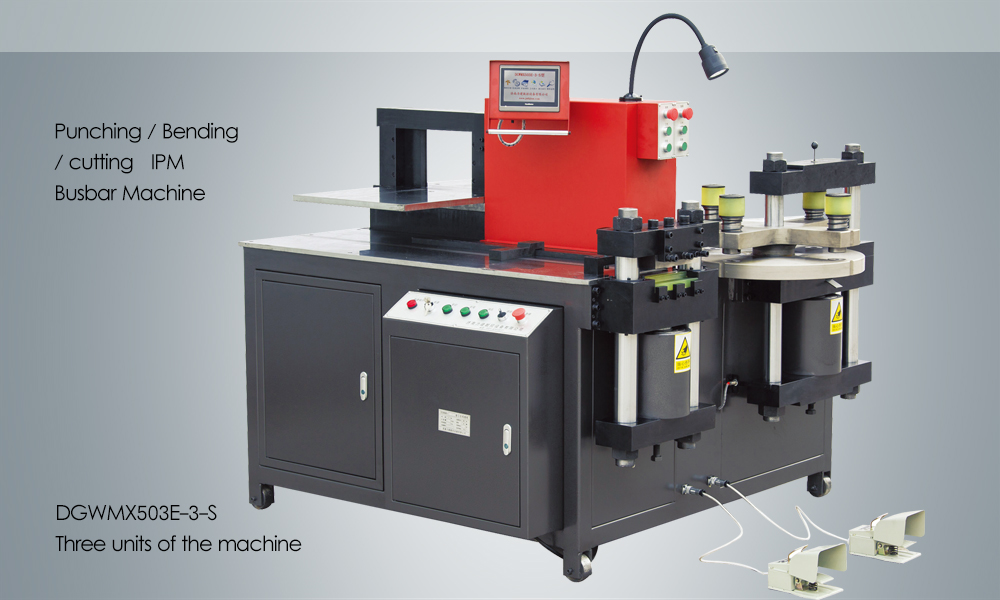

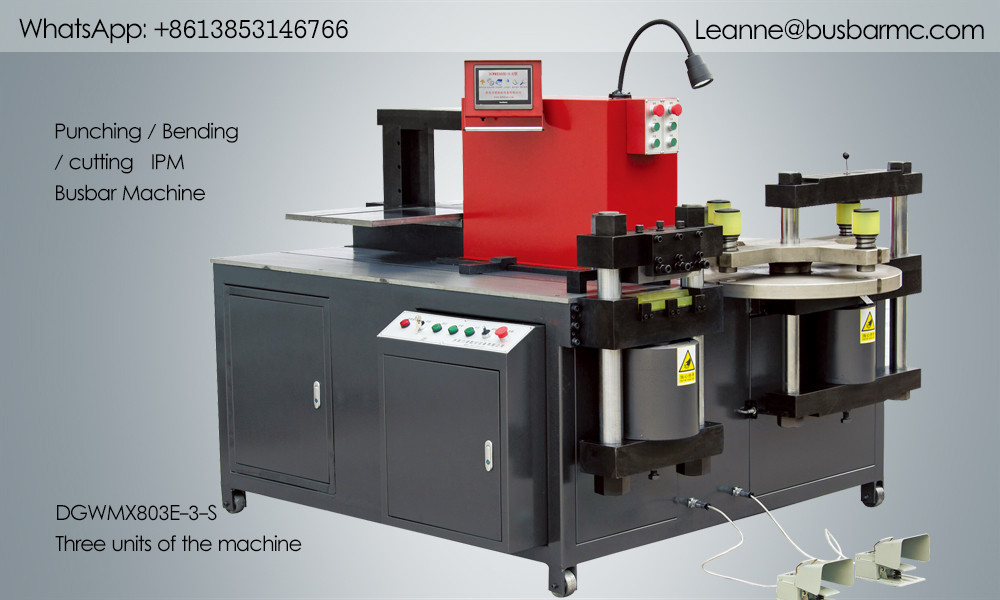

2.Three working units:
1)Punching unit:

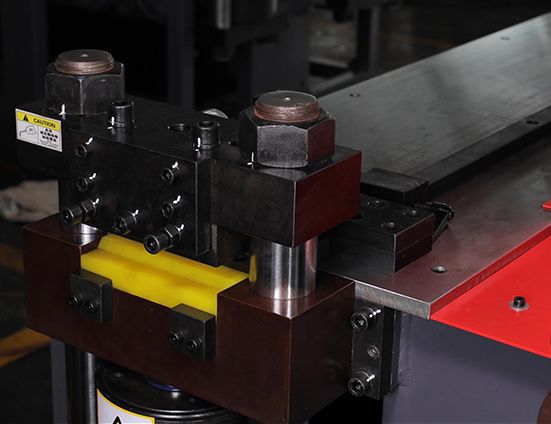

2)Shearing unit:

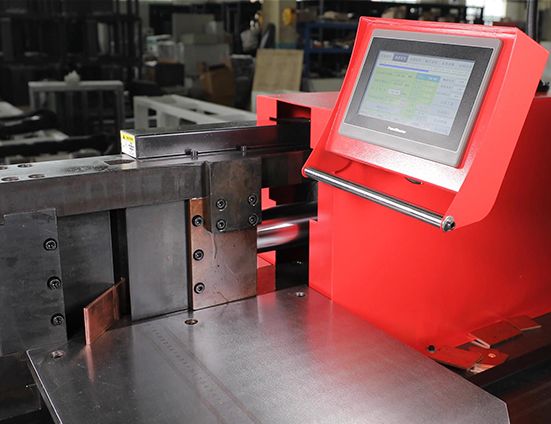

3)Bending units:
3.Packing and shippment:
1)Firstly,the machine must be packed with plastic sheet.
2)Secondly,the machine must be packed in a wood case.
4.Service:
24 hours free hotline will be waiting for you once you have bought our machine.
We will try our best to solve your problems by video.Quality will be our best brand for you.We will be your best choice.
