HQ40-BC CNC Copper Busbar Cutting Bending Machine

What the HQ40-BC cutting and bending machine does

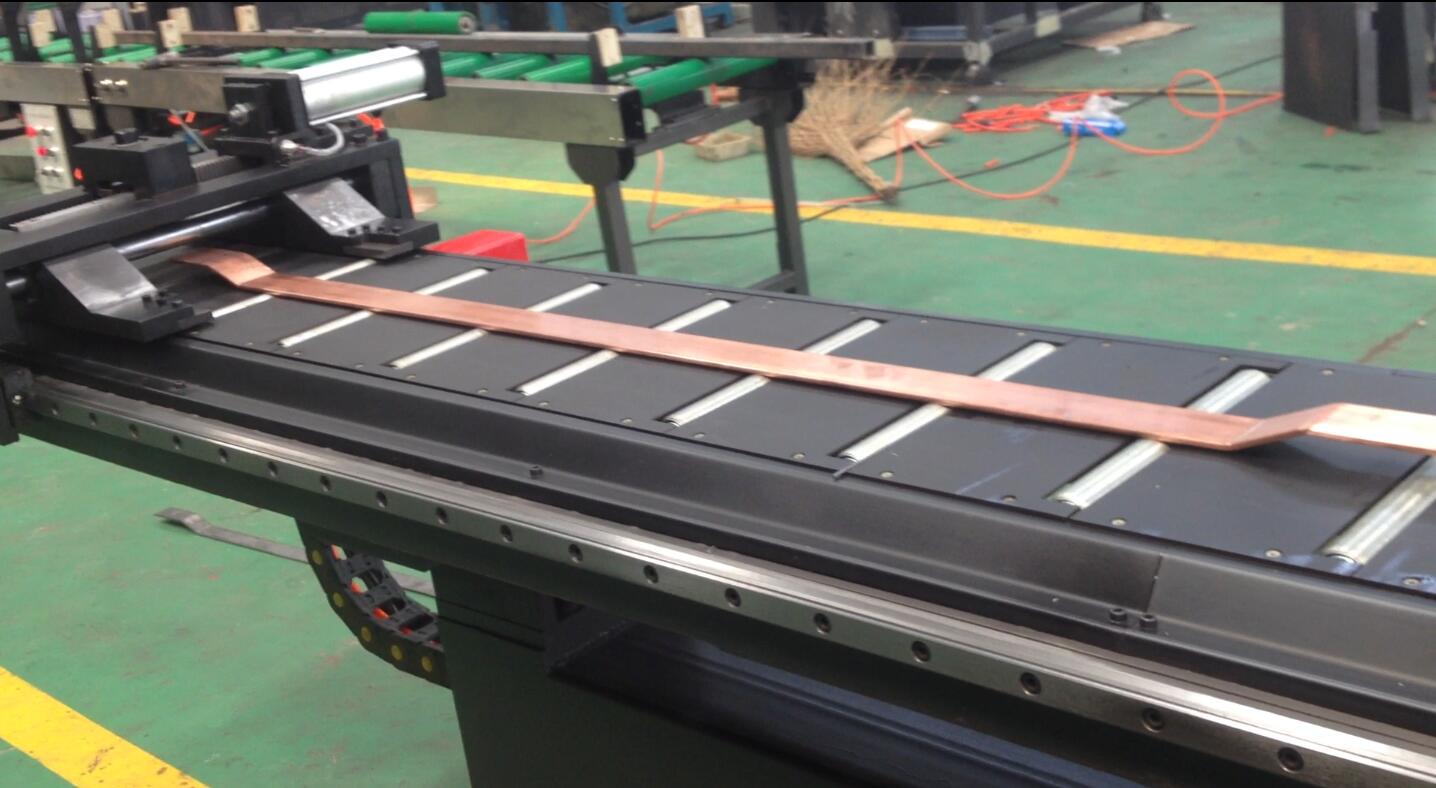

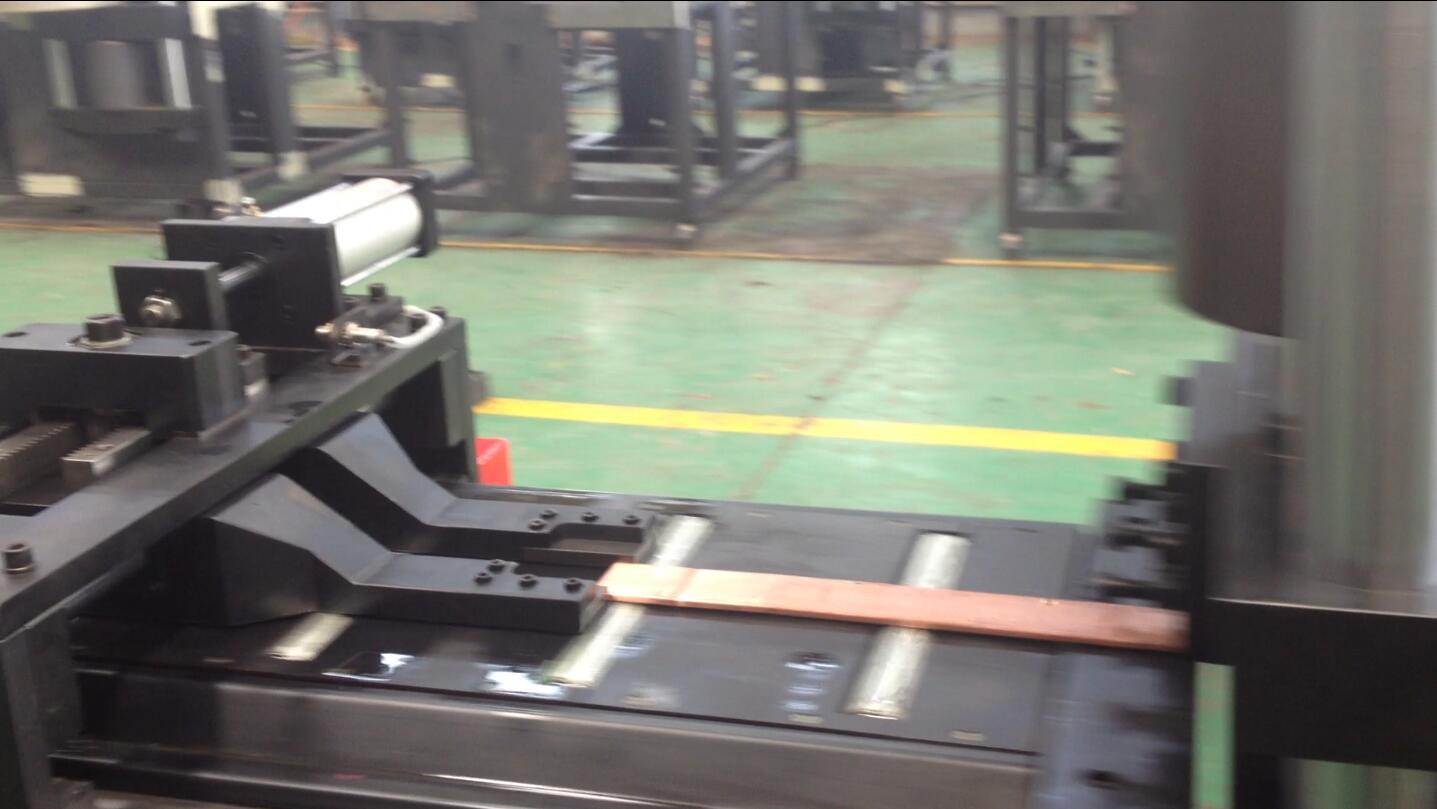

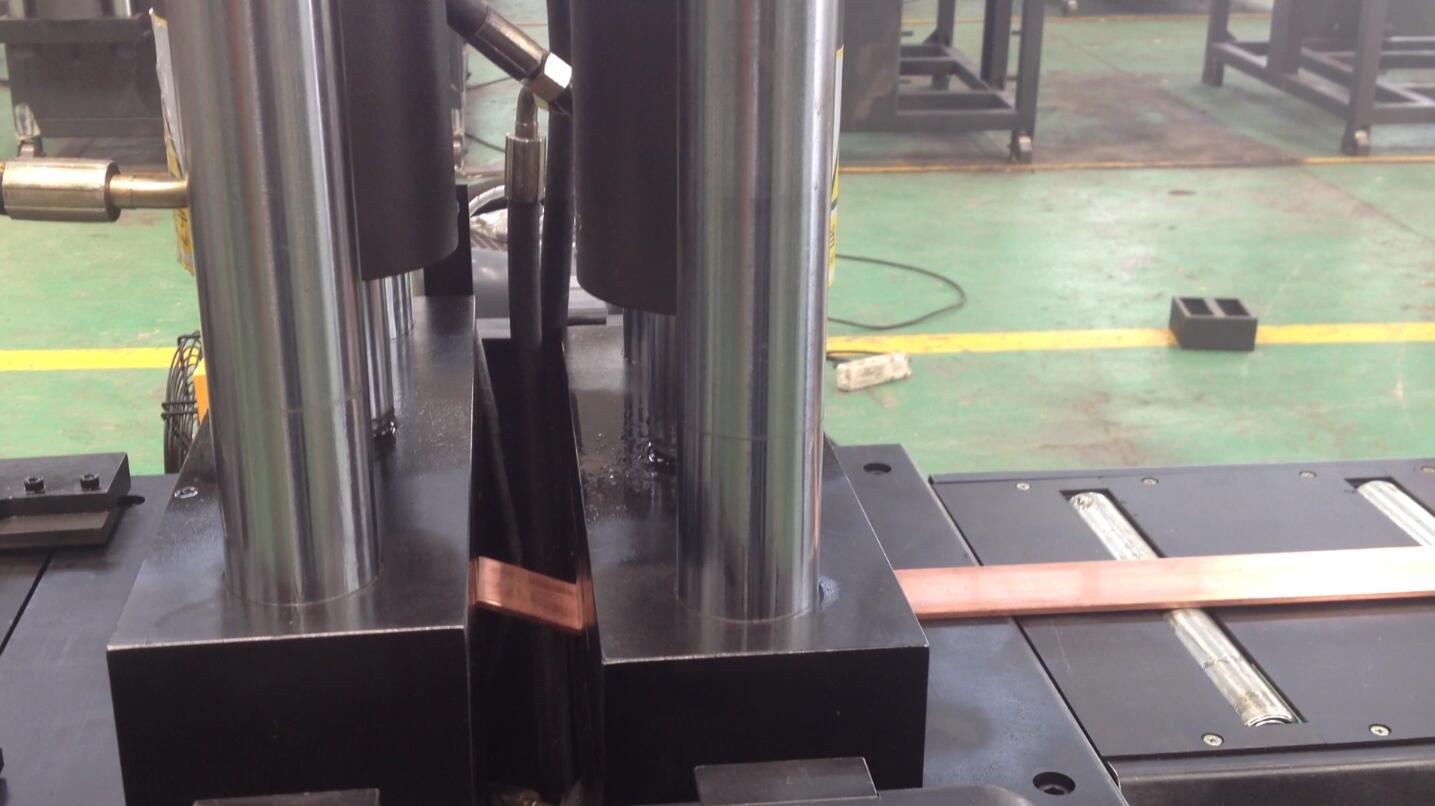

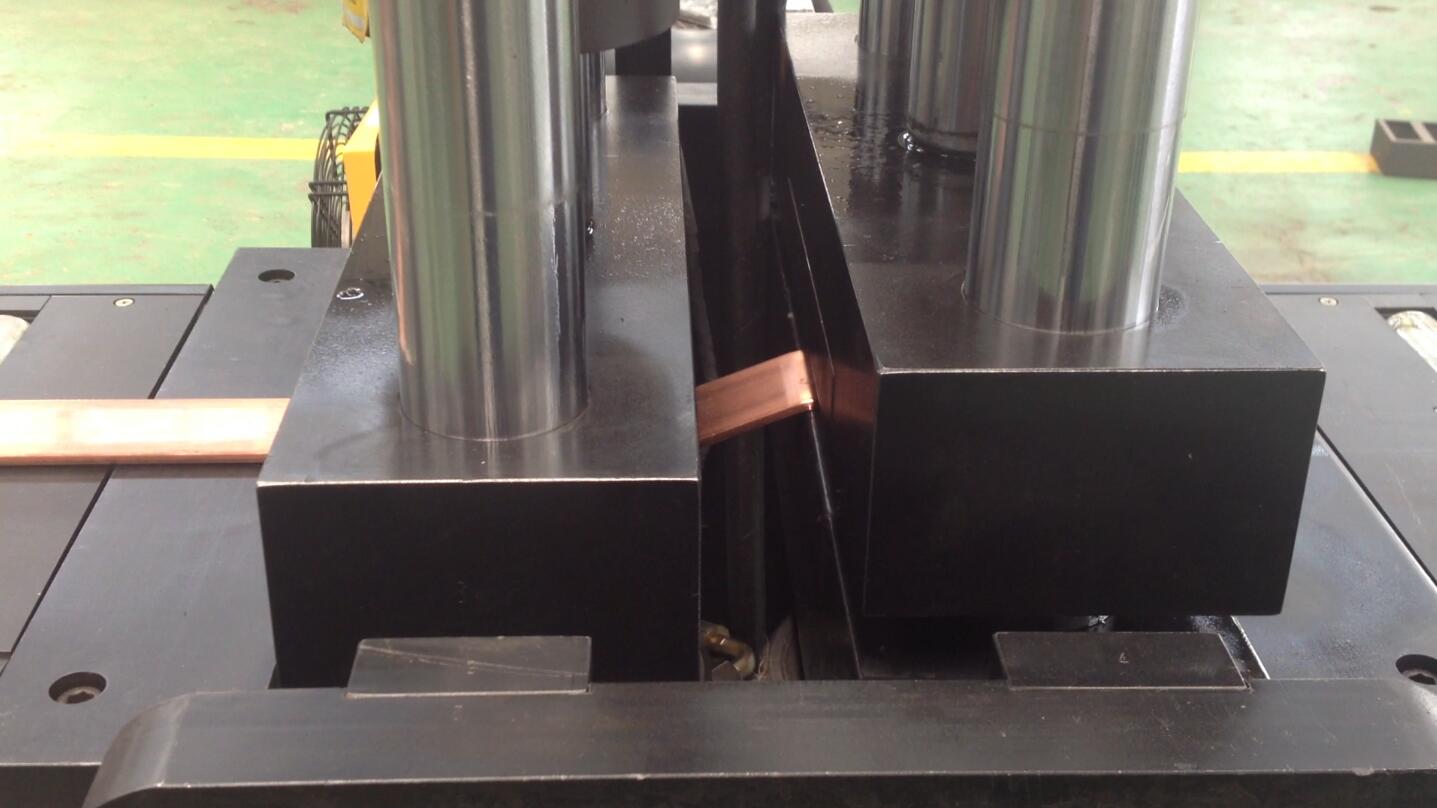

The LT HQ40-BC is a CNC copper busbar cutting and bending machine rated at 300 kN with a 3 200 mm processing length — a long-bed machine for cutting and bending copper and aluminium busbar. Its 3 200 mm length and 9 600 mm overall footprint place it in the category UK busway producers use for long straight runs that would otherwise need two setups. Process width is 210 mm and process thickness 10 mm, with a maximum tensile height of 30 mm. It is typically specified where a run has to be cut and bent from a single long bar rather than assembled from sections.

Measured performance — HQ40-BC

Test conditions: Copper and aluminium busbar cutting and bending on a 3 200 mm processing length machine at 300 kN punching force.

Measured values: Punching force 300 kN; process width 210 mm; process thickness 10 mm; process length 3 200 mm; maximum tensile height 30 mm; overall size 9 600 × 700 × 1 400 mm.

Benchmark: A single 3 200 mm processing length against processing long bars in two setups: one bar, one setup, no joint introduced into the run.
