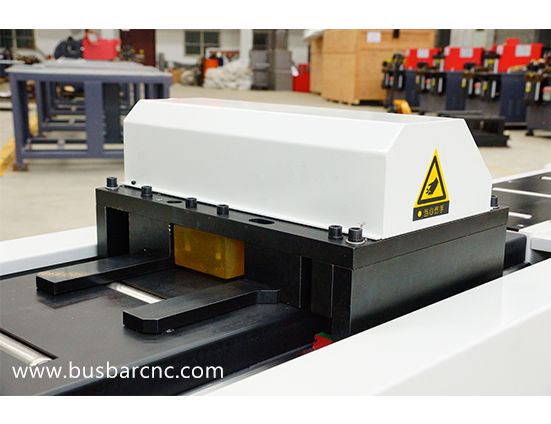

The LT JCX-130 is a CNC busduct joint connection busbar machine for busbar trunking (BBT) systems.
The LT JCX-130 is a CNC busduct joint connection busbar machine for busbar trunking (BBT) systems. It processes the connection bar through punching, stretching, bulging and cutting automatically, and raw material is clamped once with automatic clamp switching, so waste is lower and the finished part rate higher than a manual sequence. The striking head works hydraulically and the busbar is held by hydraulic clamp. Hole distance accuracy is quoted at better than ±0.1 mm across a 5 × 130 mm machining range, which is what makes the joint bars in a UK busway run interchangeable rather than matched to their position.
Test conditions: Busduct joint connection busbar processed automatically through punching, stretching, bulging and cutting, with raw material clamped once and automatic repeat clamp switching.
Measured values: Nominal pressure 200 kN; X-axis maximum positioning speed 50 m/min; striking cylinder trip 30 mm; striking frequency 60 times/min; hole distance accuracy better than ±0.1 mm; machining range 5 × 130 mm; high precision ball screw and linear guide transmission.
Benchmark: Better than ±0.1 mm on hole distance against a manual layout-and-drill sequence: at that tolerance the joint bars in a run are interchangeable, which is what allows a busway joint to be replaced on site without matching it to a specific position.
HQ.JCX-130 CNC Busduct joint connection busbar of BBT trunking system machine
Product
CNC Copper Busbar Busduct joint connection Machine
Serial
MX.JCX-130
Main Function:
Busduct joint connection busbar of BBT trunking system
Main Feature:

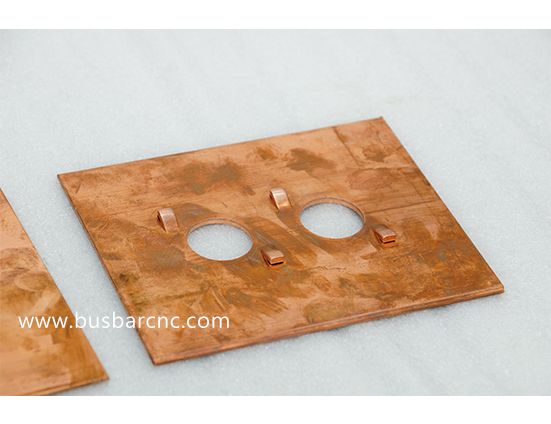

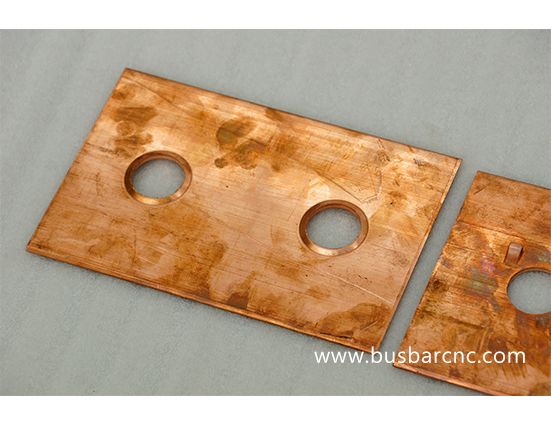

MX.JCX-130 CNC Copper Busbar bus duct disconnect switch machine CNC Bus dust connection joint bus bar processing center belongs to a new generation of processing equipment of our company that is independent researched and developed by ourselves. The main use is processing production of bus dust connection bus bar , including punching, stretching, bulging, cutting and other processing technology.
1.The main use is processing production of bus dust connection bus bar , including punching, stretching, bulging, cutting and other processing technology automatically.
2.raw materials can be realized that clamped once, without manual intervention in the process,automatic repeat switching clamp, remaining less waste, higher rate of finished products and high degree of automation.

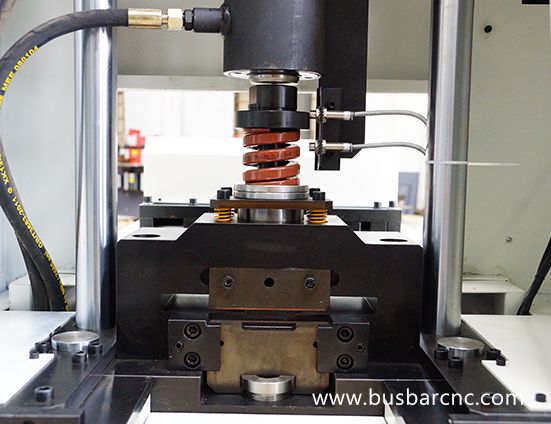

3.The main striking head of this machine is using hydraulic work way, with the advantages of pressure strong, performance stable, the security high etc.
4.Bus bar adopts hydraulic clamp to clamp, force strong, stability high.
5.The Busway Switches machine machine adopts the man-machine interface (touch screen) dialogue, when working , simply set the relevant parameters, can be convenient to connect various technological busbar processing, has the advantages of simple operation, low requirement for the operator etc.
6.this machine adopts the transmission mode of high precision ball screw , high precision linear guide rail with the advantages of high efficiency, low energy consumption, high stability and so on.
Tech Paramete:
Nominal Pressure - 200KN
The max position speed of X axis: 50m/min
The trip for striking cylinder: 30mm
Frequency of striking: 60 Times/min
Accuracy of the distances of the holes: ＜±0.1mm
Machining Range: 5×130 mm
Overall size: 3600×1000×1500 mm
Weight: 1300kg
